Description:

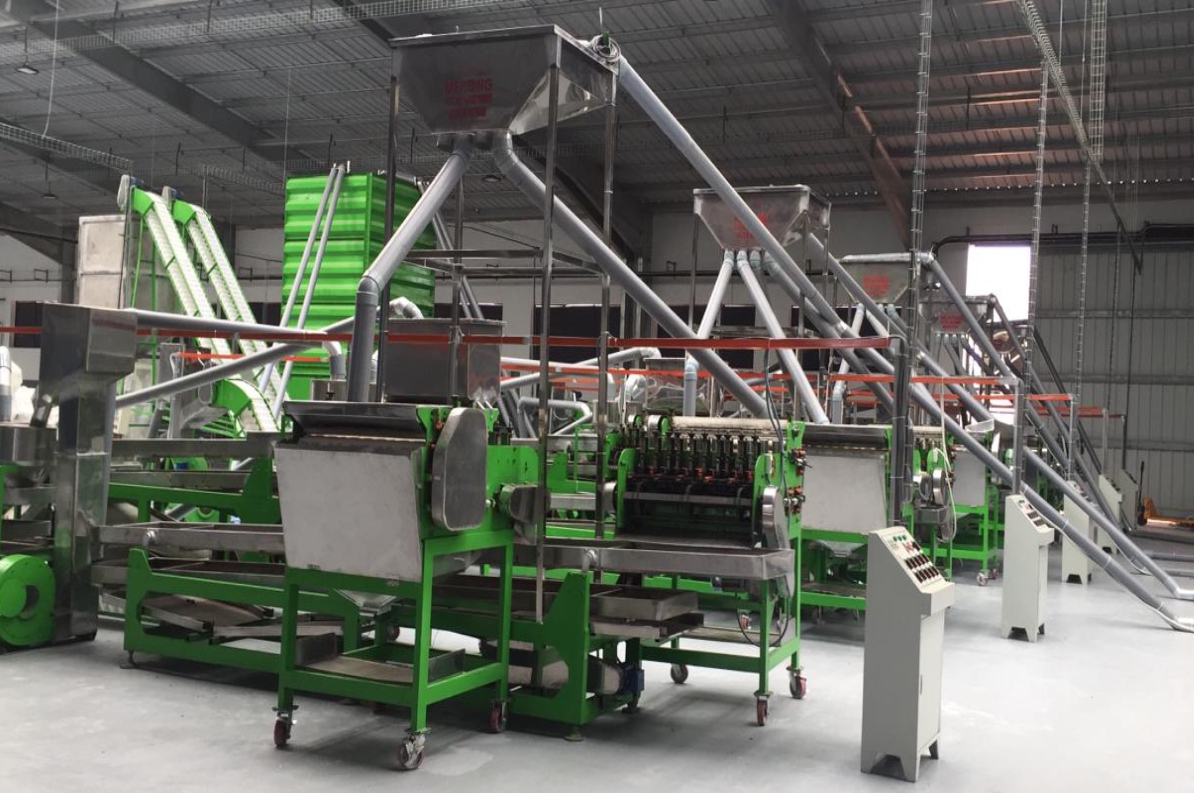

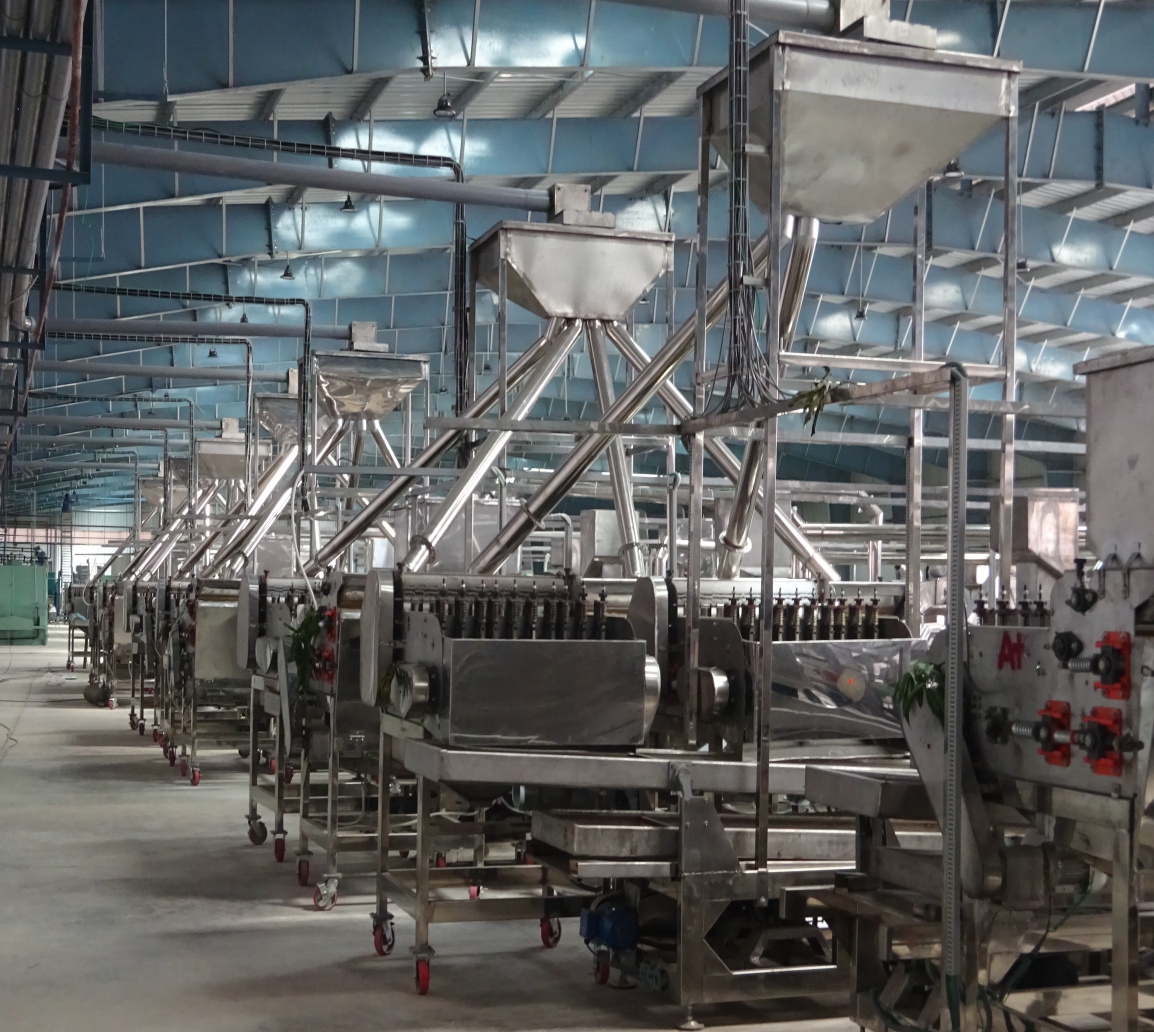

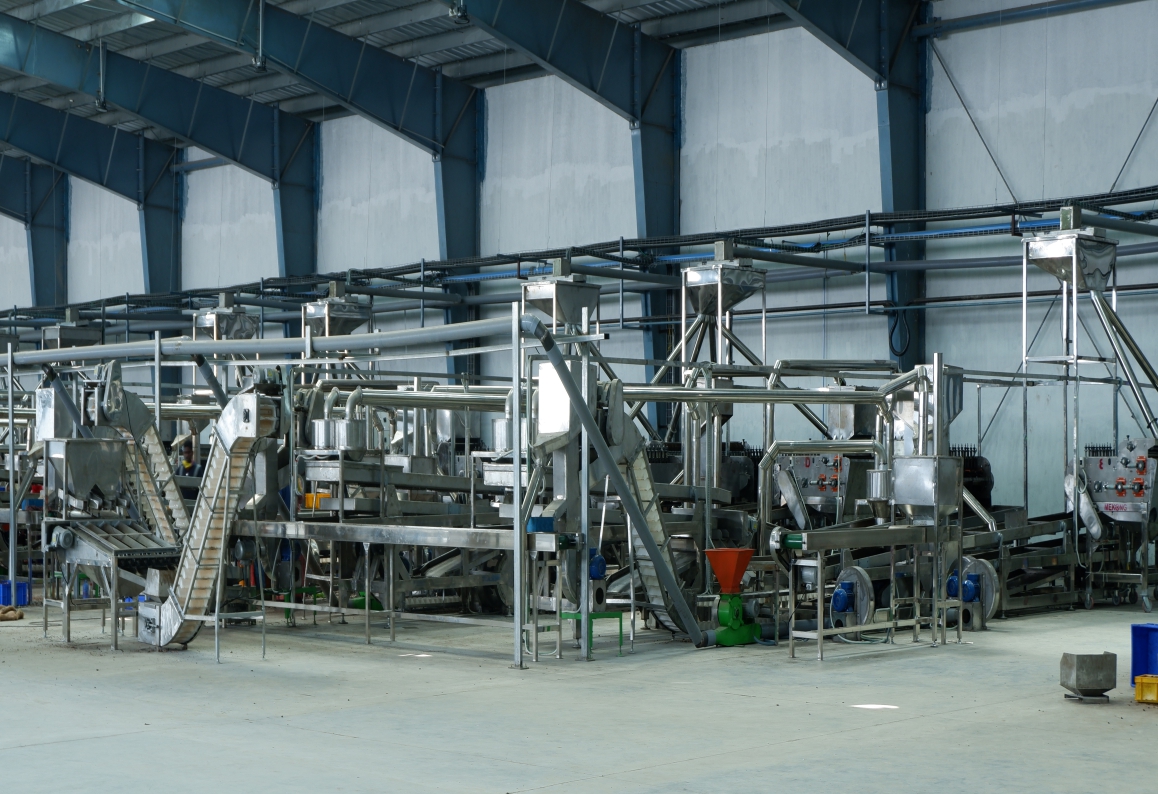

AUTOMATIC CASHEW SHELLING LINE MODEL MEKONG-2024 is automatic from feeding to shelling and separating, productivity from 300-3000 kg/hour/line, Broken rate < 5%, shelled rate < 5%, no oil contamination, saving Save labor 2 workers operate 1 line.
Advanged features:
Full automatic from feeding, shelling, sieving kernels, air blowing shells, grading uncuttted and unscooped cashew and automatically reshelling and unscooping then separating kernel, cashew shell and uncutted and unscooped, minized pieces of shell mixed in kernel
All machine in line is machined by cnc technology and manufactured by a team of skilled workers to help the machines in the line have high performance and durability.
Equipped with ball bearings, motors and electrical equipment are imported from Japan, Germany, Taiwan, Korea, China.
The processing stages in the line are separated to help minimize oil contamination in the stages.
The line has a compact design with high productivity, saving space, and it is easy to connect many lines into a labor-saving high-productivity automatic cashew shelling & seperating system.
Energy saving, easy to operate, maintain and repair.
Spectification:
| Model: MEKONG-12H1
Capacity/ Capacité: 350 -400kg/hour Rate broken/ Taux cassé: < 6 % (A,B <=3%, C,D <6%) Cutted rate/ taux décortiqué: > 95%. (the first cutting >85%, the second cutting > 95%) Power/ Puissance: 15 Kw, 380 V, 50 Hz Dimention: 20,000 x 3,500 x 3500 mm |
Model: MEKONG-12H2
Capacity Capacité: 600-800 kg/hour Rate broken/ Taux cassé: < 6 % (A,B <=3%, C,D <6%) Cutted rate/ taux décortiqué: > 95%. (the first cutting >85%, the second cutting > 95%) Power/ Puissance: 20 Kw, 380 V, 50 Hz Dimention: 20,000 x 3,500 x 3500 mm |
Model: MEKONG-12H4
Capacity Capacité: 1,400-1,600 kg/hour Rate broken/ Taux cassé: < 6 % (A,B <=3%, C,D <6%) Cutted rate/ taux décortiqué: > 95%. (the first cutting >85%, the second cutting > 95%) Power/ Puissance: 20 Kw, 380 V, 50 Hz Dimention: 20,000 x 3,500 x 3500 mm |
Model: MEKONG-12H6
Capacity Capacité: 1800-2000 kg/hour Rate broken/ Taux cassé: < 6 % (A,B <=3%, C,D <6%) Cutted rate/ taux décortiqué: > 95%. (the first cutting >85%, the second cutting > 95%) Power/ Puissance: 30Kw, 380 V, 50 Hz Dimention: 20,000 x 4,500 x 3500 mm |
Model: MEKONG-12H8
Capacity Capacité: 2,400- 3,000 kg/hour
Rate broken/ Taux cassé: < 6 % (A,B <=3%, C,D <6%) Cutted rate/ taux décortiqué: > 95%. (the first cutting >85%, the second cutting > 95%) Power Puissance: 40Kw, 380 V, 50 Hz Dimention: 20,000 x 5000 x 3500 mm |
Picture:
